PS7201是一种针对锂离子/聚合物电池保护的高集成解决方案。PS7201包含内部电源MOSFET、高精度电压检测电路和延迟电路。PS7201具有电池应用中所需的所有保护功能，包括过充、过放电、过电流和负载短路保护等。准确的过充电检测电压保证安全充分充电。低备用电流在存储期间从电池排出的电流很少。该设备不仅针对数字手机，还适用于任何其他需要长期电池寿命的锂离子和锂聚电池驱动的信息设备。

PS7201需要最少数量的现成的外部组件，并可在一个节省空间的SOT23-5软件包中使用。

产品特点

充电器反向连接的保护电池单元反向连接的保护

过温保护，过充电流保护

两步过电流检测：过放电电流负载短路

充电器检测功能

0V电池充电功能

50mΩ低RSS（ON）内部功率MOSFET

延迟时间是在内部生成的

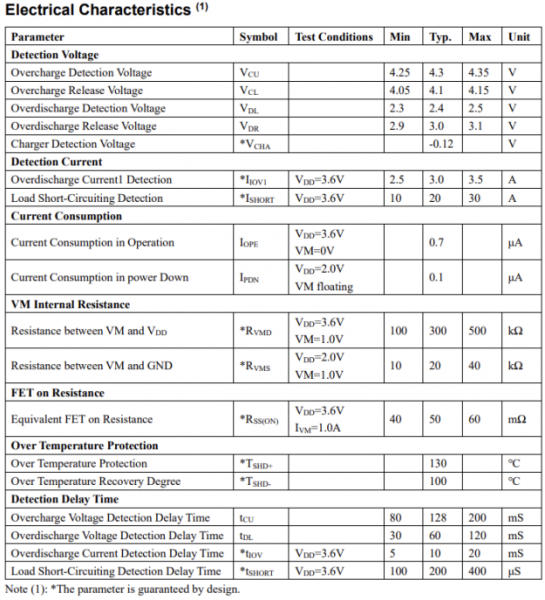

高精度电压检测，低电流消耗

The PS7201 is a high integration solution for lithium-ion/polymer battery protection. PS7201 contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits. PS7201 has all the protection functions required in the battery application including overcharging, over discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life. The PS7201 requires a minimal number of readily available, external components and is available in a space saving SOT23-5 package.

Features• Protection of Charger Reverse Connection• Protection of Battery Cell Reverse Connection• Over-temperature Protection• Overcharge Current Protection• Two-step Overcurrent Detection:Over Discharge CurrentLoad Short Circuiting• Charger Detection Function• 0V Battery Charging Function• 50mΩ Low RSS(ON) Internal Power MOSFET• Delay Times are generated inside• High-accuracy Voltage Detection• Low Current ConsumptionOperation Mode: 0.7μA typ.Power-down Mode: 0.1μA typ.• Only One External Capacitor Required• Available in SOT23-5 Package• -40°C to +85°C Temperature RangeApplications• One-Cell Li-ion Battery Pack• Power Bank• One-Cell Li-poly Battery Pack• IOT Sensor/Electronic Toys
